MANIFOLD HEATING SYSTEMS

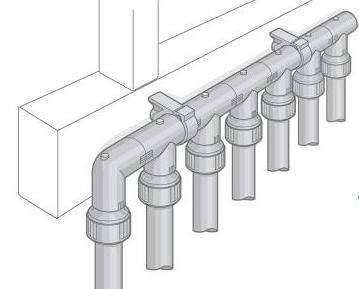

MANIFLOW saves energy and conserves water by having a dedicated pipeline
from a manifold near the hot water cylinder to each tap or fixture in the house.
Hot water goes straight where it is needed without sitting around cooling in the big feeder pipes needed to serve multiple outlets.
Less energy and water is wasted as hot water arrives faster at the tap.
Flexible and non-metallic pipes result in a quiet and efficient plumbing system
that does not suffer corrosion, scaling or microbiological build-up.

Technical Details

General properties

Colour: grey
Density: 0.937 g/cm3

Mechanical properties

Tensile strength at yield: 340 Mpa
Modulus of elasticity: 2,700 Mpa
Hardness (Shore): D60

Thermal properties

Coefficient of expansion: 1.3 x 14-4cm/cm/C
Thermal conductivity: 0.22W/mK

Hydraulic properties

Working pressure: class 16 (1,600kPa)
Hazen-Williams constant (C): 140
Pressure wave propagation velocity:198 m/s
Heat loss characteristics: AS/NZS3500 refer Hazen-Williams formula

Dimensions

Pipe 15mm 18mm 22mm 28mm
Mean OD min 12.6 15.8 22.1 27.9
Mean OD max 12.8 16.0 22.3 28.2
Wall thickness min 1.6 1.6 2.1 2.7
Mean ID 9.3 12.5 17.6 22.2
  • Temperature and pressure relationship is for operational purposes and not failure pressure.
  • Don't use MANIFLOW in continuously circulating hot water loops of above 60C without expert consultation.
  • Always install MANIFLOW to AS/NZS3500 National Plumbing Code standards.
  • Keep it shielded or painted to protect it from UV light if you're fitting orstoring it externally for extended periods.
  • Avoid exposing MANIFLOW to petroleum solvents.
  • Insulate MANIFLOW in areas where freezing is possible.


Call Dean on 021 437 802



HBC Plumbing is proud to work with quality components from Leap Limited


Click image to enlarge



Why MANIFLOW is better

  • Reduces water wastage
  • Saves energy
  • Reduces sudden temperature changes
  • Needs no maintenance
  • Guaranteed
  • Quiet
  • Clean and safe
  • Reduces freezing bursts
  • Quality approved
